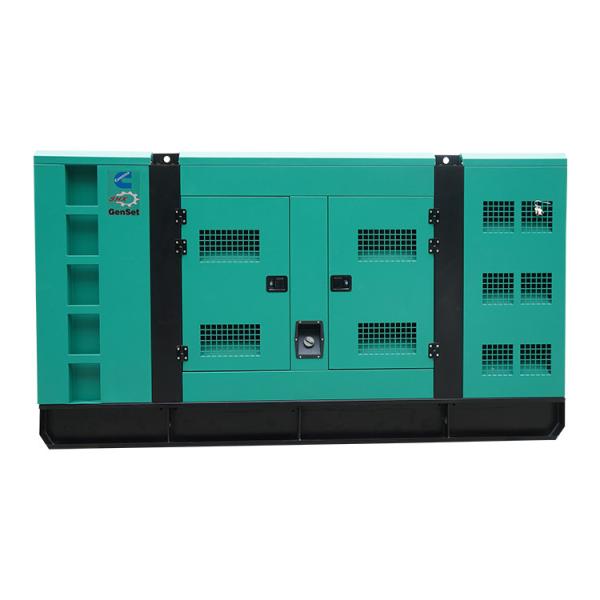

SHX 563kva Backup Diesel Generator 619kva Soundproof Cummins Diesel
Generator Set
Standard Configuration of 563kva backup diesel generator:
1) Cummins engine
2) Leory Somer alternator
3) Smartgen HGM6110 control panel
4) Delixi circuit breaker
5) 8 Working Hours Base Fuel Tank
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
9) Soundproof canopy
Technical specification
| Genset model | SCL619 |
| Genset rated power | 450KW/563KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 810A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4700×1800×2450 |
| Gross weight (kg) | 5300 |
| Diesel Engine |
| Brand | CCEC Cummins |
| Model | KTAA19-G6 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 19 |
| Bore×Stroke (mm) | 159×159 |
| Compression ratio | 13: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤206 |
| Lube capacity (L) | 38 |
| Alternator |
| Brand | Leroy Somer |
| Model | TAL-A47-E |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator
assembly; (4) Control panel; (5) Base frame. |
Supply Scope of silent generator
1.Standard tool kits and complete operation/maintenance/spare parts
manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange
connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 40°C ambient temperature and double-deck cooling,
with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base
frame, as to ensure the compete genset running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for
choice (bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery
charger of mains supply, fuel-water separator, water heater and oil
heater ( depends on using environment),fuel filter, oil filter,
water filter and air filter, Parallel system for your choice.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM
Service for customers.
1. Unique design and manufacture of generator according to
customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be
design according to customer’s requirement.
4. Full warranty cover to support the customers.
