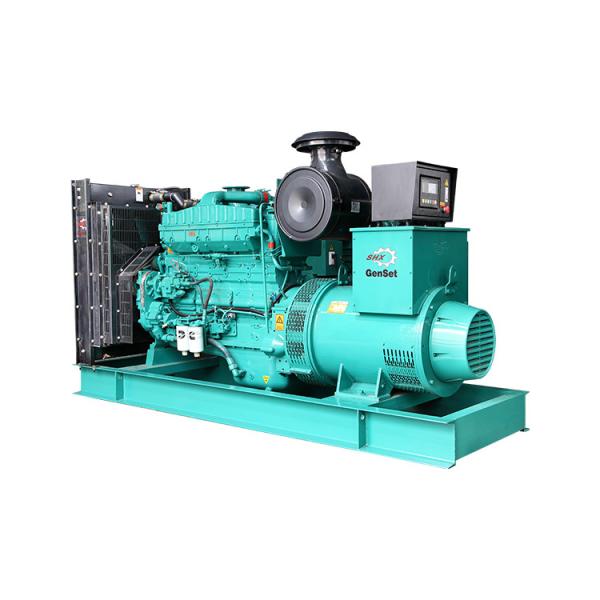

SHX 385kva Electric Diesel Generators 350kva Cummins Series
Generator Power Generator Silent
Power Specifications
1) 1500RPM at 50Hz/1800RPM at 60Hz
2) Water Cooled
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Excited
6) IP22 Protection
7) AVR regulation
8) Starting by Battery
Specification of 350kva Cummins series diesel generator
| Genset Model | SHX-350 |
| Prime Power | 280KW/350KVA |
| Standby Power | 308KW/385KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 504A |
| Genset Structure | Open type |
| Dimension | 3000×1000×1750mm |
| Net Weight | 2800KG |
| Noise level | |
| Fuel Tank Capacity | |
| Engine Model | CCEC Cummins NTA855-G2A |
| Engine Features | 6-cylinder, 4 stroke, water cooled, turbo |
| Bore * Stroke | 140mm × 152mm |
| Displacement | 14L |
| 12-hour Power(kw) | 308KW/1500 |
| Fuel Consumption (g/kw.h) | 201 |
| Compression Ratio | 14:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD444E |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen 6110 | intelligent and network techniques is used for automatic control
system of diesel generator. It can carry out functions including
automatic start/stop, data measure and alarming.automatic switching
control functions (AMF), especially suitable for the automation
system composed by Mains and Generator |
Standby Generator Set
Usually, the power required by the user is supplied by the mains,
and the generator set sets up to ensure the basic production and
life of the user is the standby genset when the mains is cut off or
when the power supply is interrupted for other reasons.
This type of generator set is mainly located in the
telecommunications sector, hospitals, and industrial and mining
enterprises, airports, television stations and other major power
generations.
This type of genset is kept in standby state at all times,
providing a continuous supply of power to non-constant loads, with
no restrictions on the duration of continuous operation.
