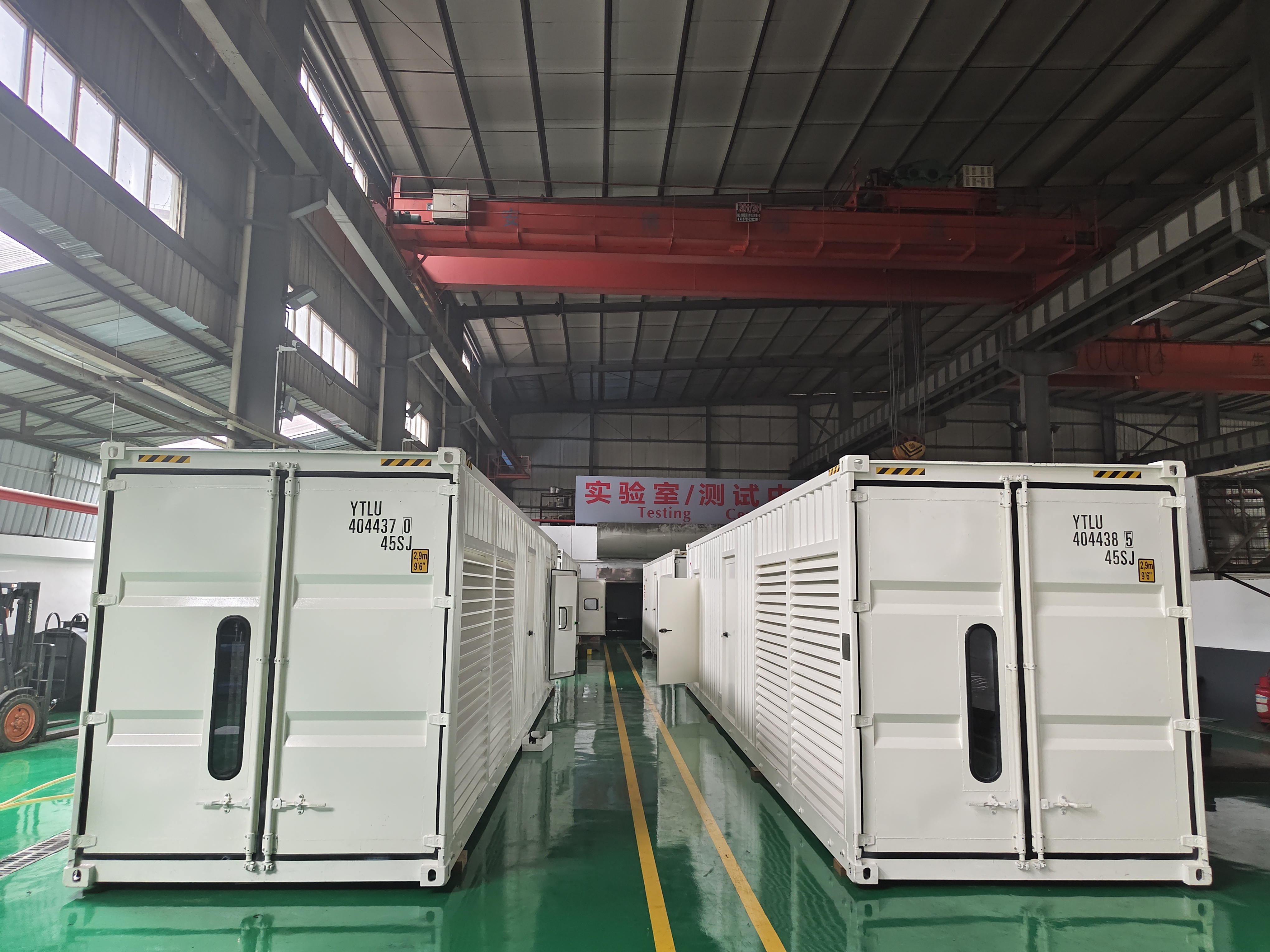

    1200kw Cummins Generator 3 Phase Genset 1250kw Container Diesel Generator For Mining

    Ask Lasest Price
    Brand Name : SHX
    Model Number : SHX-1250
    Certification : ISO9001:2015, CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    Delivery Time : Negotiable
    • Product Details
    • Company Profile

    1200kw Cummins Generator 3 Phase Genset 1250kw Container Diesel Generator For Mining

    1200kw Cummins Generator 3 Phase Genset 1250kw Container Diesel Generator For Mining


    Advantages:

    1.Reliable Performance:

    Reliable performance is the major advantage of SHX products, which is based on the outstanding design

    in every aspect and strict QC system.

    2.Customer First:

    We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and

    design new products for customers.

    3. Technical Support and Service:

    Our engineer team will solve your technical problems within 48 hours.

    4.Strict test process before ex-factory:

    Every product will be tested twice before ex-factory, free load and under load, all products are 100%

    ex-factory pass rate.

    5.Certification:ISO9001:2015, TUV etc.


    Genset Specifications

    Genset modelSHX-1250
    Genset rated power1200KW / 2000KVA
    Rated voltage230/400V
    Rated current2165A
    Frequency50 Hz
    Power factor0.8 Lagging
    Connecting type3 phase 4 wire
    Cooling systemClosed cycle water-cooled with fan, water tank
    Overall dimension (L×W×H) mm6058×2438×2896
    Weight (kg)14000

    Engine Specifications

    Diesel Engine
    BrandCUMMINS
    ModelKTA50-GS8
    Engine structure16 cylinders in vee, 4 stroke, turbocharged
    Rotating speed1500 RPM
    Engine cooling methodWater-cooled
    Speed governing systemElectronic speed governor
    Starting methodBy 24V batteries
    Engine filter systemDry type air filter ,fuel filter, oil filter, water filter
    Displacement(L)50.3
    Bore×Stroke(mm)159×159
    Compression ratio14.9: 1
    100% Load fuel consumption (litre/h)320
    Lube capacity(L)178

    Alternator Specifications


    Alternator
    BrandLEROY SOMER
    ModelLSA 50.2 L8
    Excite typeBrushless self-excited AVR regulation
    Connecting type3 phase 4 pole
    Steady frequency change0.50%
    No load voltage≥95%-105%
    Steady voltage≤±1%
    Insulation classClass H
    Protection gradeIP23


    INSPECTION AND TEST

    1 GENERAL

    1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption

    in accordance with the site operating condition specified by purchaser on the specification datasheet.

    1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the

    purchaser in advance of the test date notification.

    1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment

    rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.

    1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the

    purchasers satisfaction at the manufacturer’s cost.

    1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.

    1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all

    auxiliaries, instruments and controls for a complete test of the generator set.



    Introduction of Guangdong Sunkings Electric Co., Ltd.

    Guangdong Sunkings Electric Co., Ltd has more than 20 years experience in manufacturing and maintenance

    of diesel generator sets. We mainly manufacture 20-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai

    powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the

    Japan cost, since the design and all materials are same as original factories, the quality remains almost same as

    original factories.
