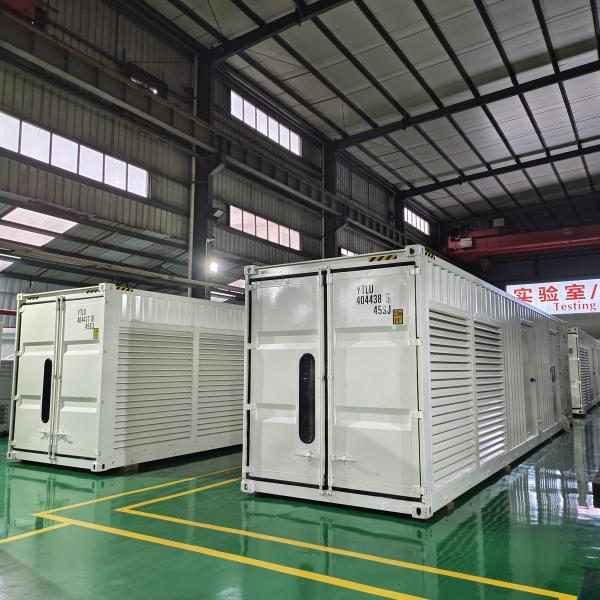

1600kw Generator Plant 2000kva Electric Diesel Generator For Power
Station
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Genset Specifications
| Genset model | SHX-2000 |
| Genset rated power | 1600KW / 2000KVA |
| Rated voltage | 230/400V |
| Rated current | 2886.8A |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 12192×2438×2896 |
| Weight (kg) | 22000 |
Engine Specifications
| Diesel Engine |
| Brand | CUMMINS |
| Model | QSK50-G17 |
| Engine structure | 16 cylinders in vee, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 49.8 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 14.7: 1 |
| 100% Load fuel consumption (litre/h) | 386 |
| Lube capacity(L) | 151 |
Alternator Specifications
| Alternator |
| Brand | LEROY SOMER |
| Model | LSA 52.3 S6 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Parallel Control Panel
Parallel control panel enables two or more generator sets, or
generator sets and the mains parallel to supply
electricity to loads. Parallel control panel box is GGD structure
which has manual, semi-auto and auto control.
Manual parallel control panel: Operator analyzes and makes parallel
work signal basing on the indicator in the
parallel control panel box to parallel generator sets. With
parallel control panel, power supply can be flexible
controlled according to power needs.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM
Service for customers.
1. Unique design and manufacture of generator according to
customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be
design according to customer’s requirement.
4. Full warranty cover to support the customers.
