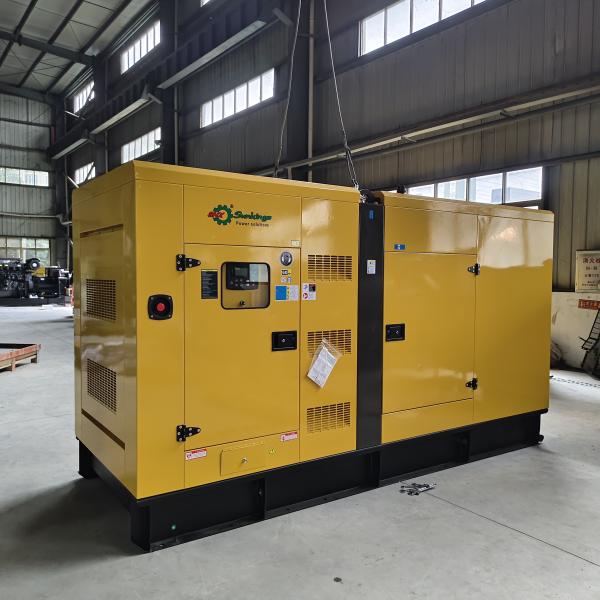

150kw Electric Diesel Generators 200kva 380V Industrial Genset
Silent Generator
Standard Configuration of Diesel Generator Set Powered by Cummins Engine:
1) Cummins engine
2) Stamford alternator(Marathon, Mecc Alte, Wattek brand for
option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime,
only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Genset Specifications:
| Genset model | SHX-150 |
| Genset rated power | 150KW/188KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 270A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 3500×1250×1900 |
| Weight (kg) | 2300 |
| Diesel Engine |
| Brand | Cummins |
| Model | 6CTA8.3-G2 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 8.3 |
| Bore×Stroke (mm) | 114×135 |
| Compression ratio | 17.3:1 |
| 100% Load fuel consumption (L/h) | ≤40 |
| Lube capacity (L) | 23.8 |
| Alternator |
| Brand | Farrand |
| Model | FLD274HS |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset |
| (1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4)
Control panel; (5) Base frame; (6) Canopy. |
Features
- Standard open type is good to working in engine room with
ventilation system.
- The super silent model ( up to 50kw ) has electronic cooling fan
and special design low noise level
- canopy, which is specialized for low noise level environment, such
as office building, villa, museum.
- Standard soundproof type ( IP21 ) will be working perfectly in the
open air
- All standard type can be working in 3rd explosive area for mining
industry, special design will be suitable
- for 2nd explosive area.
- All functional components are modular design, for fast repair,
replace, and reduce stock, which can satisfy
- rental business.
- 50℃ radiator
- IP54 ( soundproof sets ), IP56 ( control system )
- Base fuel tank for at least 8 hours running
- For friendly experience, all I/O control interface and daily
maintenance parts are combined in one side.
