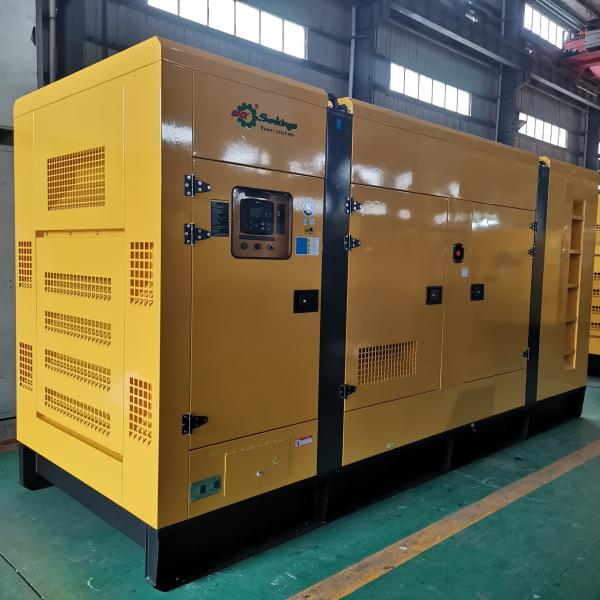

SHX 400kw 3 Phase Generator 500kva Cummins Diesel Generator Set
Technical Specifications
| Genset Model | SHX-500 |
| Prime Power | 400KW/500KVA |
| Standby Power | 440KW/550KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50/60Hz |
| Rated Current | 720A |
| Genset Structure | Soundproof type |
| Dimension | 4600×1600×2300mm |
| Net Weight | 4450KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 8 hours |
| Engine Model | QSZ13-G3 |
| Engine Features | 6-cylinder, 4 stroke, water cooled, turbocharged |
| Bore * Stroke | 130mm × 163mm |
| Displacement | 13L |
| 12-hour Power(kw) | 4406KW/1500 |
| Fuel Consumption (g/kw.h) | 191 |
| Compression Ratio | 17:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD544D |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Function | intelligent and network techniques is used for automatic control
system of diesel generator. It can carry out functions including
automatic start/stop, data measure and alarming.automatic switching
control functions (AMF), especially suitable for the automation
system composed by Mains and Generator |
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service.
2. With ISO9001&CE certification.
3. Spare parts are easy to get from worldwide market with much
cheaper price.
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator.
5. Perfect after-service network.
6. Both 50Hz and 60Hz.
7. Rigorous test including 50% load,75% load,100% load and 110%
load.
8. Short delivery time.
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing
return-flow wind tunnel is used as generator
set's ventilation system, and louver is installed in the window to
prevent rains and other intruders. High efficiency
silencer with double level structure and another silencer between
two levels keep the noise at the lowest level.
The box is modular structure with indicator and maintenance doors
which make installation, operation and maintenance
very convenient. Benefited from the special design, medium low
noise diesel generator set's noise can be as low as
75dB (A) (at LP7m). Fuel tank can be installed on it according to
customer needs.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent
through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the
shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
